Ion Channels act as the brains of the cell, allowing ions to flow in and out of the cell. They are integral membrane proteins that form pores in the cell membrane, allowing specific ions to pass through. Ion channels are crucial for various cellular processes, including maintaining the resting membrane potential, generating action potentials, and regulating intracellular calcium levels.
Types of Ion Channels

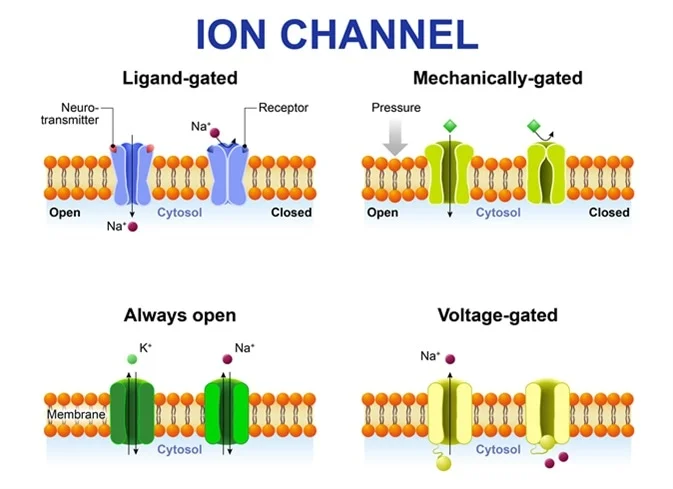

As seen in the above figure, there are 4 types of Ion Channels:
Ligand-gated
Ligand-gated ion channels open for response to binding of a chemical messenger (ligand) to the channel. Binding causes conformational change in channel protein, allowing ions to flow.
Mechanically-gated
Mechanosensitive channels respond to physical deformation of the cell membrane. When membrane tension or stretch activates these channels, they allow ions to flow across the membrane. These channels play critical roles in touch sensation, hearing, and proprioception—essentially converting mechanical stimuli into electrical signals. Some mechanosensitive channels also overlap functionally with other gating types (e.g., certain ion channels can be gated by both ligand binding and mechanical stretch).
Cyclic Nucleotide-Gated
Cyclic nucleotide-gated (CNG) channels open when intracellular cAMP or cGMP levels rise. Unlike many ion channels, these don’t stay permanently open—they’re activated by second messenger systems in response to signals like light or smell. CNG channels are essential for sensory transduction in vision (where light activates a cascade producing cGMP) and olfaction (where odorant binding triggers cAMP production). Their activation allows both Na⁺ and Ca²⁺ influx, initiating neural signaling cascades.
Voltage-gated
Voltage-gated channels open and close in response to changes in membrane potential. These channels contain voltage sensors (specialized protein domains rich in charged residues) that detect the electric field across the membrane. When the membrane depolarizes, voltage sensors undergo conformational changes, opening the gate and allowing ions to flow. Voltage-gated channels exhibit complex kinetics:
- Activation: Upon depolarization, channels open with a timescale of ~1ms
- Inactivation: After opening, many channels enter a refractory state where they cannot reopen, lasting 2-3ms. This is crucial for preventing runaway depolarization
- Three functional states: resting (closed, can open), activated (open, conducting), and inactivated (closed, cannot open until resting is restored)
These dynamics shape Action Potentials, allowing rapid depolarization followed by repolarization. Different voltage-gated subtypes (Na⁺, K⁺, Ca²⁺ channels) activate and inactivate at different potentials and timescales, creating the temporal choreography of an action potential.
Specific Ion Channels
Cl⁻ Channels
Chloride channels allow chloride ions to flow across the membrane. When activated, they typically cause hyperpolarization of the cell—making the membrane potential more negative and pushing the neuron further from firing threshold. This is the primary mechanism by which fast inhibitory synapses (like GABA receptors) suppress neural activity.
K⁺ Channels
Potassium channels allow potassium ions to flow out of the cell. Activation drives the membrane potential toward the potassium equilibrium potential (typically around -90mV), causing hyperpolarization. Different K⁺ channel subtypes operate on different timescales—some activate quickly (fast outward rectifier), others slowly (delayed rectifier)—allowing them to shape both rapid action potential repolarization and longer-lasting inhibitory effects.
Na⁺ Channels
Sodium channels are the primary drivers of action potential depolarization. When voltage-gated Na⁺ channels open, Na⁺ ions rush into the cell down their concentration gradient (high outside, low inside), rapidly depolarizing the membrane potential toward the sodium equilibrium potential (~+60mV). Na⁺ channels exhibit both rapid activation and inactivation—they open quickly (~0.5ms) in response to depolarization but then become inactivated within 1-2ms, preventing further Na⁺ influx. This inactivation is essential for halting the depolarization phase and allowing K⁺ channels to repolarize the membrane. Different Na⁺ channel subtypes (Nav1.1-1.9) have varying properties and tissue distributions, affecting excitability in neurons, muscle, and other tissues.
Ca²⁺ Channels
Calcium channels allow calcium ions to flow into the cell, serving multiple critical functions. Unlike Na⁺ channels which primarily depolarize, Ca²⁺ channels trigger neurotransmitter release when activated at presynaptic terminals—Ca²⁺ influx couples action potentials to synaptic transmission. Ca²⁺ also acts as a second messenger, activating intracellular signaling cascades that modulate gene expression, enzyme activity, and cellular responses. Multiple Ca²⁺ channel subtypes exist (L-type, N-type, P/Q-type, R-type, T-type), differing in voltage sensitivity, activation kinetics, and tissue distribution. T-type channels activate at more negative potentials and help generate pacemaker rhythms in neurons and cardiac cells, while L-type and N-type channels are prominent in synaptic transmission and neuroendocrine secretion.
Ion Selectivity
The remarkable specificity of ion channels—how a Na⁺ channel passes Na⁺ but blocks K⁺, or vice versa—emerges from a narrow selectivity filter deep within the channel pore. This filter is usually only 5-10Å long, comparable to the size of a hydrated ion, and contains conserved sequences like TVGYG in K⁺ channels.
The classical “snug-fit” model proposed that selectivity works by geometric filtering—ions fitting snugly into the filter while larger ions are blocked. But modern understanding reveals a more sophisticated mechanism: the selectivity filter replaces the hydration shell around the ion. In bulk solution, ions surround themselves with water molecules held by electrostatic attraction. Inside the filter, carbonyl oxygen atoms from the protein backbone serve the same role, coordinating the ion through oxygen atoms rather than water. This makes the filter energetically neutral to the ion—whether it’s partially hydrated outside or fully dehydrated inside, the ion’s solvation energy remains similar. This principle explains how channels can pass some ions while blocking others of similar size: only ions that can be properly coordinated by the filter’s oxygen arrangement achieve low-energy transitions.
Some channels use “knock-on” permeation, where ions queue up single-file within the filter. The entering ion pushes the preceding ion forward, allowing efficient multi-ion transport and reducing the chance an ion backslips.
Gating Mechanisms
Gating refers to the opening and closing of ion channels through conformational changes. Channels typically contain an activation gate (which opens to allow ion flow) and sometimes an inactivation gate (which closes independently after activation, creating a refractory period).
The ball-and-chain inactivation model, discovered in voltage-gated channels, describes how a short protein chain (the “ball”) swings into the channel pore following activation, physically blocking ion flow. This mechanical blocking is reversible—when the channel returns to its resting state, the ball is released, restoring the ability to activate again.
Different gating mechanisms respond to different stimuli:
- Voltage-gating: Electric field changes detection via voltage sensors
- Ligand-gating: Neurotransmitter or neuromodulator binding causes conformational change
- Mechanical gating: Membrane stretch or tension gates the channel
- Chemically-gated: Intracellular signaling molecules (e.g., IP₃, ATP) or metabolic states control gating
Channels also exhibit temporal dynamics—the timescales of activation and inactivation vary widely. Fast channels (millisecond timescale) shape action potentials; slower channels (hundreds of milliseconds) contribute to plateau potentials and bursting. These kinetic differences arise from the underlying protein structures and are tunable targets for both natural evolution and pharmacological intervention (many drugs and toxins work by modulating channel gating kinetics).
