Adjacency List

An adjacency list, like an Adjacency Matrix, is a way of representing a graph. However, instead of using a 2D array, it uses a collection of lists or arrays to represent the connections between nodes. This representation is more space-efficient for sparse graphs, where the number of edges is much less than the maximum possible number of edges. One can picture this as looking somewhat like a Hash Map.

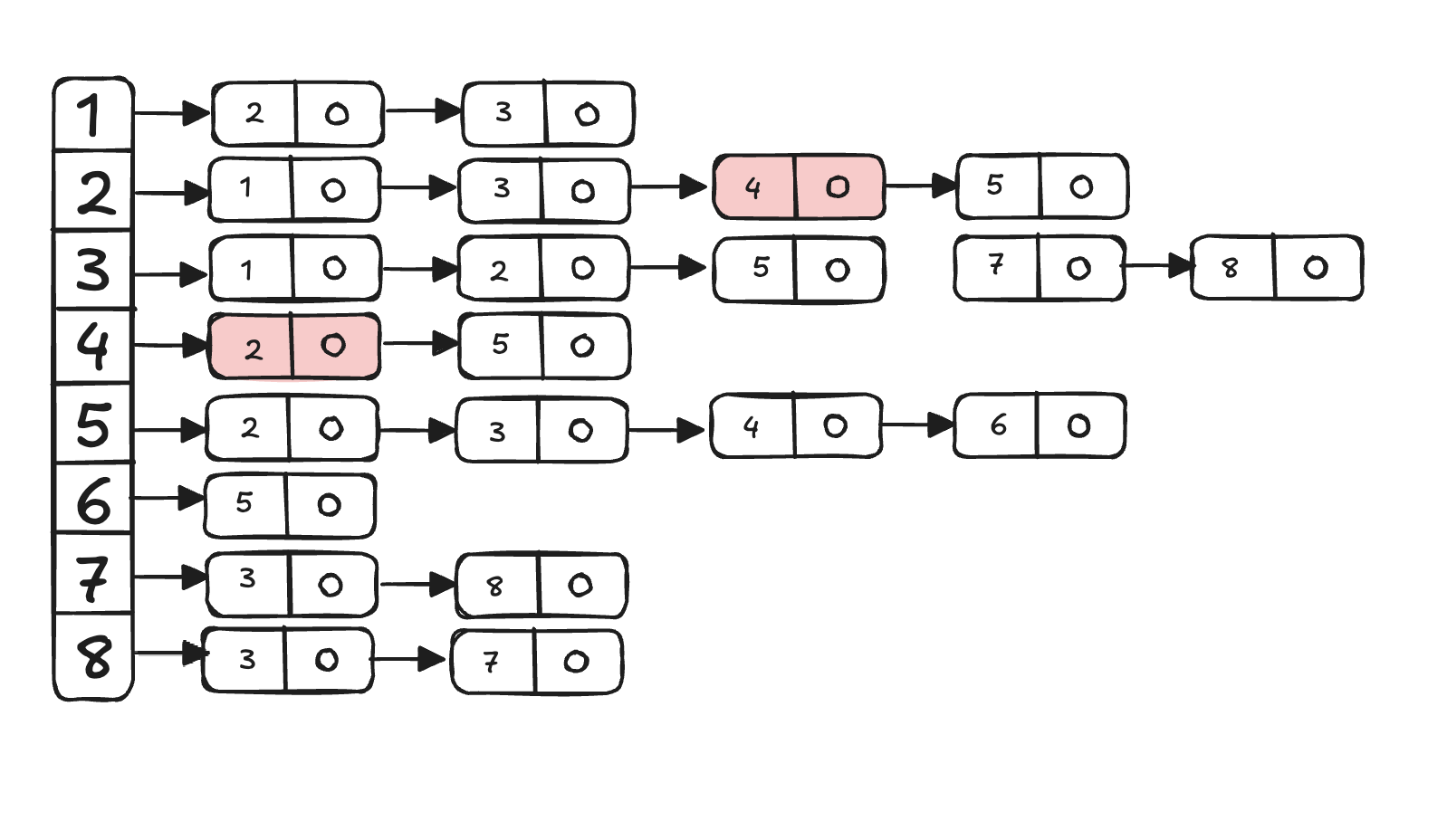

Once again consider that one undirected graph example, we can represent this as a Adjacency List with the following:

Where it is defined as follows:

• Let $G=(V,E)$ be a graph.
• The adjacency list $Adj$ is a mapping $Adj:V\to sequence$ of neighbors such that:
  • Directed graphs: $v\in Adj[u]$ if and only if $(u,v)\in E$.
  • Undirected graphs: $v\in Adj[u]$ if and only if $\{u,v\}\in E$; equivalently, $u\in Adj[v]$ as well.
• Weighted graphs: each entry in Adj[u] is a pair (v, w(u, v)); for unweighted graphs, each entry is just v.
• Multigraphs/self-loops: duplicates and u = v entries may appear in Adj[u] as permitted by E.
• Space usage: Theta(|V| + |E|).
• Basic operations:
  • neighbors(u): iterate Adj[u] in O(deg(u)).
  • hasEdge(u, v): O(deg(u)) with plain lists; average O(1) if Adj[u] is backed by a hash/set.
  • addEdge(u, v[, w]): amortized O(1); for undirected graphs also insert v into Adj[u] and u into Adj[v].
  • removeEdge(u, v): O(deg(u)) with lists; average O(1) with indexed structures.
