Homework 8 Written

Word Segmentation

Do the textbook Exercise 5 in Chapter 6. Consider the optimal function and the quality function specified below:

Optimal function: $OPT (j) =$ the maximum quality achieved by segmenting a string $y_{1} y_{2} \dots y_{j}$

Quality function: $q u a l i t y (i, j) =$ the quality of the string $y_{i} y_{i + 1} \dots y_{n}$

Give your answers as specified further below. Hint: optimal substructure of this problem is similar to that of the Segmented Least Squares problem.

Write the optimal substructure with an explanation. Make sure to include both the recursive case and the base case.

Write the memoized bottom-up dynamic programming code implementing the optimal substructure in executable pseudocode.

Write the run-time complexity of the implemented dynamic programming code in big- $O$ with a clear explanation of how the big- $O$ is formulated. Do a precise analysis of the run-time using the formula shown in the lecture slide”Segmented Lease Squares: Algorithm Running Time.”

1. Optimal Substructure

For the Recursive Case $j \geq 1$ :

OPT (j) = ma x_{1 \leq i \leq j} {OPT (i - 1) + q u a l i t y (i, j)}

To find this optimal segmentation of string $y_{1} y_{2} \dots y_{j}$ we must look at all possible initial possitions that $i$ can take as the last word in the segmentation.

For each given choice of $i$ , we note that the last word is $y_{i} y_{i + 1} \dots y_{j}$ , which holds quality of $q u a l i t y (i, j)$ . The rest of the prefix $y_{1} \dots y_{i - 1}$ must be optimally segmented with quality $OPT (i - 1)$ , meaning the total quality is $OPT (i - 1) + q u a l i t y (i, j)$ . Optimal segmentation is thus yielded when you take max over all valid choice of $i$ .

For the Base Case, we know that $OPT (0) = 0$ , as an empty string has a quality of 0, meaning there is no words.

Memorized Bottom Up Pseudocode

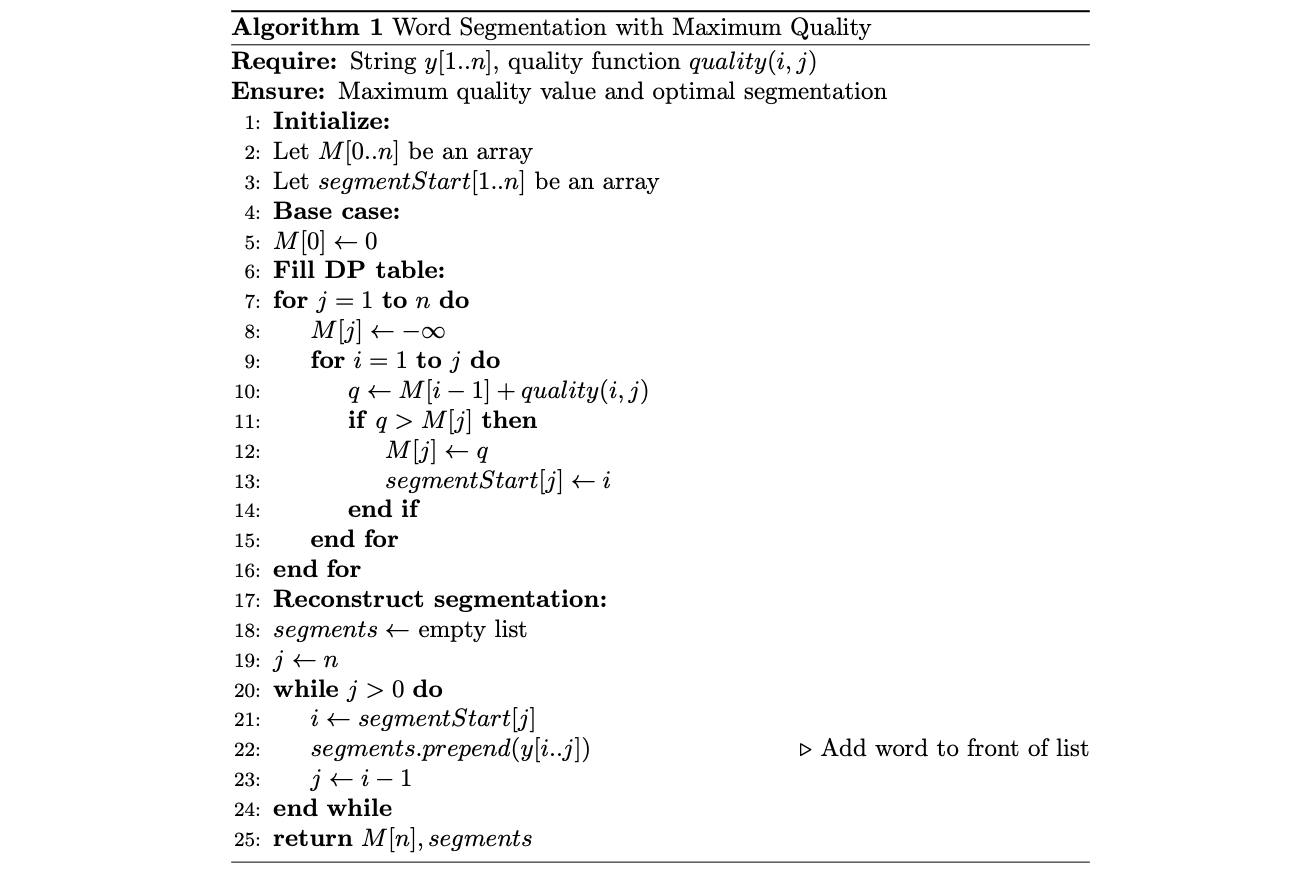

See figure 1 for the latex pseudocode algorithm, it may be on another page due to compilation quirks.

Pseudocode using dynamic programming

Runtime Complexity Analysis

We know that the Big-O Complexity is $O (n^{2})$ :

We know that we compute $M [j]$ for all $j \in n$ , and thus there are $n$ subproblems. For each subproblem, we iterate over all possible starting states $i \in {1, 2, .., j}$ , meaning for $M [j]$ we perform $j$ iterations where each iteration is $O (1)$ . This yields the total big O complexity of $O (n^{2})$ .

Knapsack: Algorithm Tracing with Bookkeeping

Consider a knapsack problem with 3 items of weights 2,3, and 4 and values 1, 2, and 5, respectively, and the capacity of total weight 6.

Based on the optimal substructure shown below, trace the algorithm by filling in the memoization table (i.e., two-dimensional array $M [0..3, 0..6]$ below) according to the following specification.

In each array entry $M [i, w]$ , write the value of $OPT (i, w)$ in the order as shown in Figure 6.11 of the textbook

In each array entry $M [i, w] (f or i > 0)$ , also write whether the item $i$ is included in the solution or not. Write $y$ if included and $n$ if not. (This does not apply to the base case (i.i., i = 0) of the optimal substructure)

The format of an entry is $\frac{o}{c}$ , where $o$ is the optimal value and $c$ is either $y$ or $n$

Find the items selected as a solution by performig backtracking of the memoization table (filled in the step 1. above) starting from the last entry (i.e., $M [3, 6]$ ). Specifically, in your answer:

write the sequence of array entries tracked (i.i., probed) backward until the base case is reached

write the resulting set of items selected An example format of the answer is “Backtrack $M [3, 6]$ , $M [i_{1}, w_{1}]$ , $\dots$ The resulting set of items selected is ${i_{3}, i_{2}}$ ”

OPT(i,w)=\begin{cases} 0 & if \quad i=0 \ OPT(i-1,w) & if \quad w_{i}>w \ max{ OPT(i-1,w), v_{i}+OPT(i-1,w-w_{i}) } & otherwise \end{cases}

> > ![[Screenshot 2025-10-29 at 12.42.42 PM.png|Provided Values]] > > ![[Screenshot 2025-10-29 at 12.43.14 PM.png|Memoization Table]] ### Memoization Table | i/w | 0 | 1 | 2 | 3 | 4 | 5 | 6 | | ----- | --- | --- | --- | --- | --- | --- | --- | | **0** | 0 | 0 | 0 | 0 | 0 | 0 | 0 | | **1** | 0/n | 0/n | 1/y | 1/y | 1/y | 1/y | 1/y | | **2** | 0/n | 0/n | 1/n | 2/y | 2/y | 3/y | 3/y | | **3** | 0/n | 0/n | 1/n | 2/n | 5/y | 5/y | 6/y | ### Backtracking Starting at point M[3,6], we check if item 3 is included (it is), then move to M[2,2]. At M[2,2], item 2 is not included, so we move to M[1,2]. At M[1,2], item 1 is included, leading us to M[0,0], the base case. Thus, the selected items are {1, 3}.
