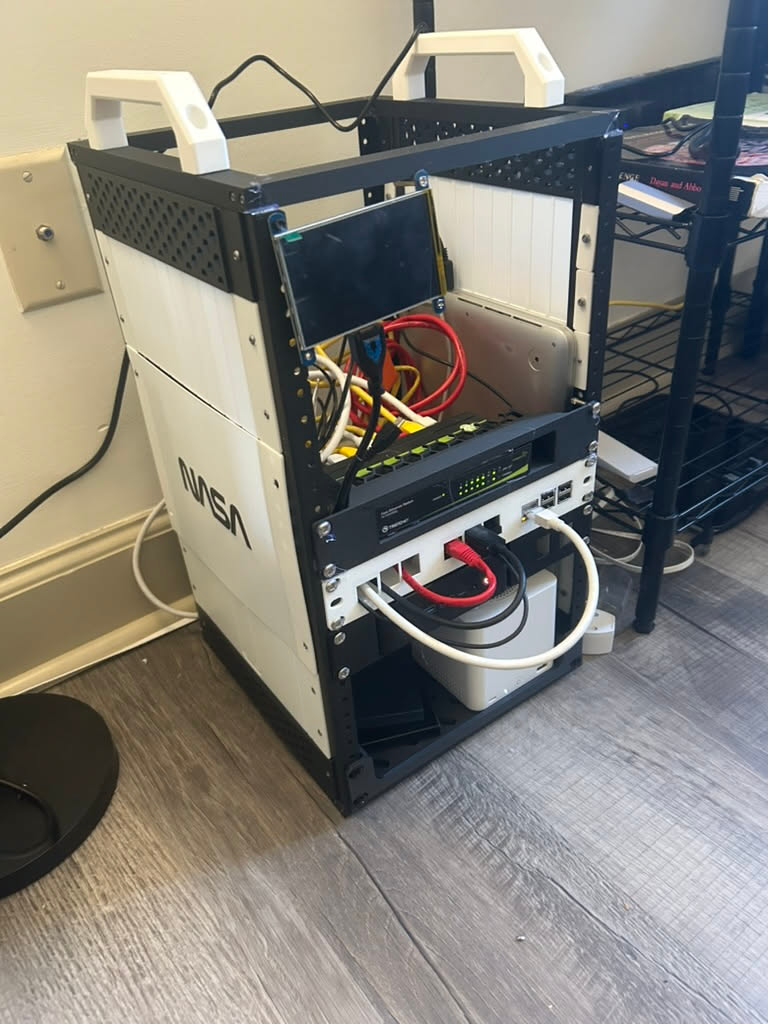

this is now the main page for work on the 3d printed 10 inch rack
Materials and Design
As the makerworld page outlines, there are a few things we will need:
Makers Supply
- M3x5x4 Round Threaded Brass Heat-Insert Nut (20PCS) - AB012 × 2
- M3x10 BHCS Machine Screw (20PCS) - AA172 × 1
- M3x20 BHCS Machine Screw (10PCS) - AA061 × 1
- M3x8 BHCS Machine Screw (20PCS) - AA058 × 2
- M3 Carbon Steel Hex Nut (20PCS) - AB005
External
Filament
- black pla (already have)
- white pla
Pieces to Print
- 1 - Front rails x 2
- 2 - Front rails x 2
- 3 - Side rail x 1
- 4 - Side rail x 1
- 5 - Side rail x 1
- 6 - Side rail x 1
- 7 - Side mounting x 1
- 8 - Side mounting x 1
- 9 - Side mounting x 1
- 10 - Side mounting x 1
- 11 - Side panel 2u wavy x 1
- 12 - Side panel 2u wavy x 1
- 13 - Side panel 2u door x 1
- 14 - Side panel 2u door x 1
- 15 - Side panel 4u x 1
- 16 - Side panel 4u x 1
- 17 - Mounting clip x 24
- 18 - Handle x 2
Assembly Manual
Extra Parts
I like some of the ideas for mountings from this video, namely the ones for the mini pcs, will look into them.
Hardware
For hardware I can stick with the Mini PC i have for now, but eventually want to invest in a full solution like the video below:
https://www.youtube.com/watch?v=wbRViRwflbI
I want to implement 3d min pc nodes with the structure from This homelab setup is my favorite one yet.
I am thinking of two Venus UM790 Pro Mini PC’s and a mini nas like the Beelink ME Mini NAS which is perfect for a 10 inch rack.
